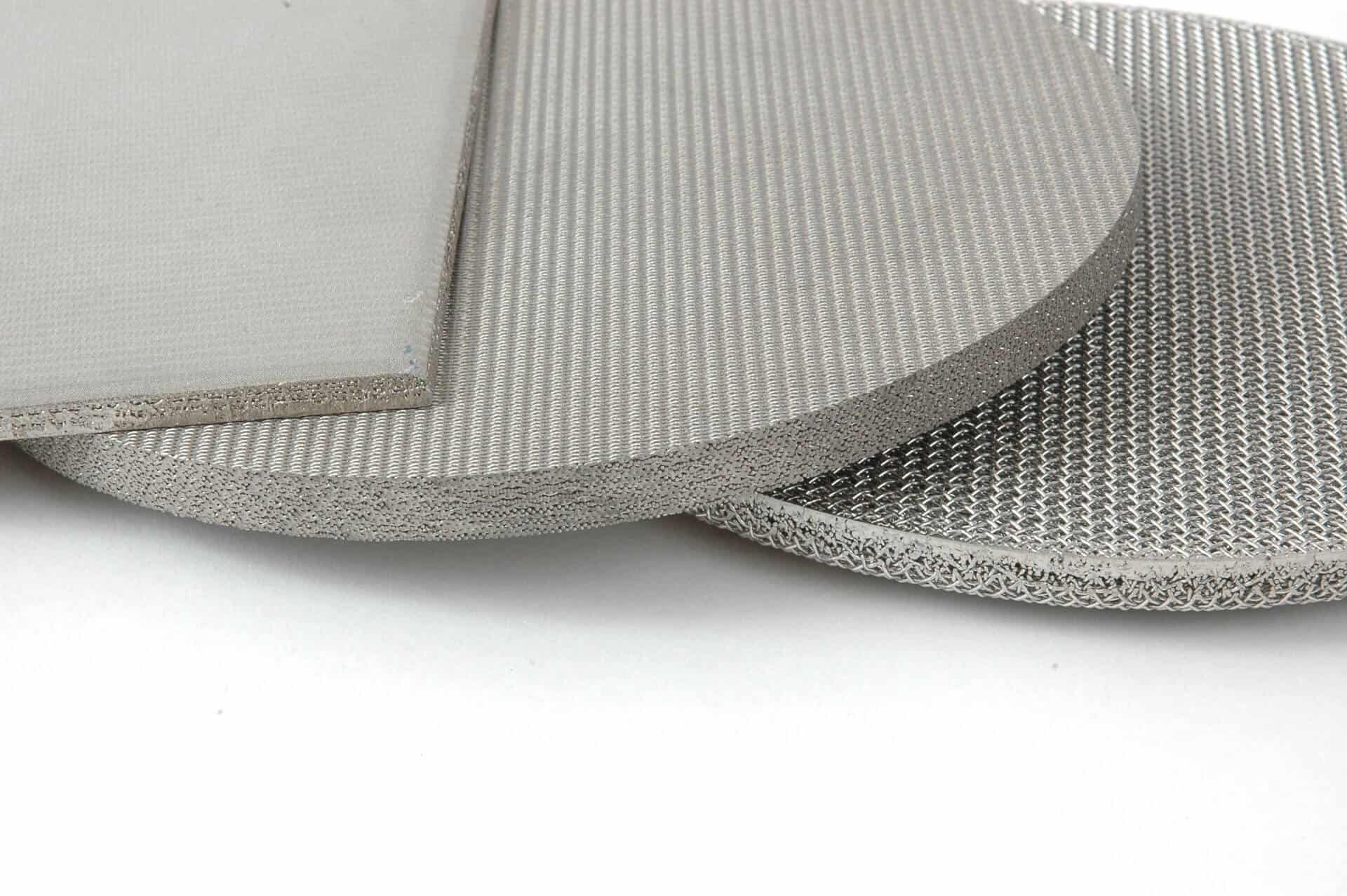

SinterPore™ Sintered Metal Mesh provides many additional benefits when compared to traditional wire cloth.

• Diffusion bonded wire cloth can be fabricated in single or multiple layers. Multiple layer assemblies provide enhanced mechanical properties for filters and harsh environment applications.
• Sintered wire mesh is stable, making it ideal for mesh with a high percentage of open area or that requires a secure pore size.
• SinterPore™ sintered mesh is easy to fabricate and produces a stable, strong product. It can be constructed as a depth filter media, providing excellent filtration properties. It is an excellent material to use for products that require controlled permeability.
• Sintered wire mesh can be cleaned and re-used for many applications.
• Diffusion bonding locks and secures all wire in the mesh, eliminating loose wires and increasing the stability of the cloth. It can be used for small parts and special shapes without losing shape or loose wires. Traditional wire cloth can become loose and ineffective over time.

SinterPore™ sintered metal filter wire mesh is available in a wide range of micron ratings, mechanical properties and alloys. The standard product is available in 24” x 48” sheets produced from 316LSS stainless steel. Many other alloys are and sizes are available up to 48” x 55”.

We offer several standard series of SinterPore™ wire mesh laminates.

• Single Layer Series                             (SL Series)
• Filter Plate Series                               (FP Series)
• High Flow                                            (HF Series)
• Perforated + Mesh Series                (PM Series)
• Custom Laminates                            (CL Series)

In addition to our standard products, we offer custom weaves, a wide range of alloys and materials and layering configurations to provide you with a product that meets your exact specifications.

SL Series: (Single Layer Mesh Series)

Ensures that all warp and shute wires are locked securely. It also allows for easy in deep drawing and forming.
Standard sheet size is 24” x 48”.
Mesh Layers: 1

FP Series (Filter Plate Series)

Our filter plate series is used in many applications that require a robust and strong filter media. Nominal filter ratings from 1 micron to 100 are available.

Standard Sheet Size: 24” x 48”.

Number of Layers: 5 layers.

Common Construction: Protection / Filter / Drainage / Support Structure / Support Structure

HF Series: (High Flow Series)

Our high-flow filter plate are the ideal media when high flow and robust construction are required. This series offers a wide range of options in support and drainage mesh.

Nominal filter ratings from 2 – 500 microns are available.

Standard Sheet Size: 24” x 48”.

Number of Layers: 2 layers, 3 Layers, 4 Layers, 5 Layers

2 Layer Common Construction: Protection / Filter:    The protection layer is normally a plain or twill weave. Filter layer can generally be almost any mesh construction or weave pattern.

3 Layer Common Construction: Protection / Filter / Support:    The protection layer is normally a plain or twill weave. Filter layer can be almost any mesh construction and the support layer is normally a plain weave. This construction provides a media that is easy to clean.

4 Layer Common Construction: Protection / Filter / Drainage / Support: :    The protection layer is normally a plain weave. Filter layer can be almost any mesh construction or weave pattern. The drainage layer is normally a plain weave with a high percent of open area. The support layer is normally a plain weave.

5 Layer Common Construction: Protection / Filter / Drainage / Support /Heavy Support:    The protection layer is normally a plain weave. Filter layer can be almost any mesh construction or weave pattern. The drainage layer is normally a plain weave with a high percent of open area. The first support layer is normally a plain weave and the heavy support layer can have a wire diameter of .020” or larger.

PM Series: (Perforated Plate + Mesh Series)

Super robust media that incorporates woven wire cloth and perforated plate. This media has very high compressive and mechanical strength. Many designs can have safe margins designed into the panel (non-perforated area) to aid in fabrication and handling.

Nominal filter ratings from 5 – 200 microns are available.

Standard Sheet Size: 24” x 48” (Custom sizes available).

Number of Layers: 2 layers, 3 Layers, 4 Layers, 5 Layers.

3 Layer Common Construction: Filter / Drainage / Perforated Plate:    Filter layer is exposed and can be almost any mesh pattern. Drainage layer is normally a plain weave. The perforated support layer is normally at least 35% or greater open area.

4 Layer Common Construction: Protection / Filter / Drainage / Perforated Plate:    The protection layer is normally a high open area plain weave. Filter layer can be almost any mesh construction or weave pattern. The drainage layer is normally a plain weave with a high percent of open area. The support layer is normally a plain weave.

CL Series: (Custom Layer Laminates)

Custom diffusion bonded laminates have endless design possibilities. We can design sintered wire cloth laminates to fit your application and optimize your process. Sintered metallic fiber felt can be incorporated into our wire mesh laminates.

Nominal filter ratings from 5 – 1000 microns are available.

Standard Sheet Size: 24” x 48” (Custom sizes available).

Number of Layers: 2 – 200 or more layers of wire cloth.

Definition of Sintered or Diffusion Bonded Wire Mesh:

Stainless Steel Sintered Wire Mesh is a filtering cloth made by pressing multi-layer woven wire cloth, then sintered together in a vacuum furnace. This kind of filtering cloth is much better than common metal woven wire mesh with good strength, hardness and good positioning of opening. Its comprehensive property is superior to sintered metal powder and porcelain. The major characteristics are: excellent strength, no inner support is required for making filter elements, no material, easily repeated cleaning, long lifespan and good anti-corrosion.

What Are Sintered Mesh Laminates?

Fine woven wire filter mesh provides micron-rated pore size but it is too thin and can be damaged. The best solution is to laminate the fine mesh to a coarser mesh supportive layer to provide increased strength and thickness. The common sintered wire mesh laminates are 5-layer or 6-layer, which is extensively used in filtration.

Sintered Metal Filter Elements Advantages

All of our Sintered Metal Filters are available in a wide range of micron ratings and alloys. In almost all cases, sintered metal filters can be cleaned multiple times. Contact us today for a detailed quote or if you have any questions about our diffusion bonded sintered wire cloth capabilities.

Sintered Metal Filter Wire Cloth Alloys

304 Stainless Steel Sintered Wire Cloth

Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

304L Stainless Steel Sintered Wire Cloth

Similar properties as 304ss but lower carbon content to permit better welding.

316SS Stainless Steel Sintered Wire Cloth

Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

316L Stainless Steel Sintered Wire Cloth

Similar properties as 316ss but lower carbon content to permit better welding.

904L Stainless Steel Sintered Wire Cloth

Hight resistance to corrosion and rust for sea water applications.

Nickel 200 Sintered Wire Cloth

Used in applications where high corrosion properties are required. Some applications could include several chemicals, caustics, and certain organic acids.

Monel 400 Sintered Wire Cloth

One of the most widely used alloys for high corrosion resistance. Used in many food and chemical processes. Monel is a registered trade mark for International Nickel Co INCO.
