Fluidizing Media
Fluidizing Media Products
PMF’s SINTERPORE® fluidizing media is ideal for fluidized transport and handling of bulk powder materials. SINTERPORE® laminates are permanently bonded under precise diffusion bonding (sintering) conditions to yield robust monolithic materials used in a wide variety of fluidizing applications.
SINTERPORE® fluidizing media, multi-layered, diffusion bonded stainless steel mesh is available in 316L and other alloys. This precision fluidising media is available in low and high flow rates, to meet your application requirements.
Porour Metal Filters provides complete fabrication services for this material, including custom sizes, shapes, mounting holes and welding to end fittings or rings. We can also fabricate into tubes or fluidisation cones for hopper bottoms.
For fluidizing applications where a tightly controlled efficiency rating is required, Porous Metal Filters can provide a precision fine filter mesh (down to 2 microns nominal) sintered to the fluidising media.
This is particularly useful in reducing particulate bypass, clogging and when fluidising gas is not flowing constantly. SINTERPORE® fluidizing media is particularly suited to demanding applications where high operating temperatures of up to 540ºC (1000ºF), increased chemical or high abrasion resistance is essential, such as silo discharge cones, fluidized reactors and fluidized dryers.
This material is easily custom engineered to meet required specifications of materials, strength, flow requirements, thickness, micron rating and environment.
Porous Metal Filters Fluidizing Media Products are used in the Bulk and Powder Handling industry and the Pharmaceutical industry.
Features and Benefits of SINTERPORE® Fluidizing Media
The multilayer laminate construction results in a strong product with precisely controlled porosity, uniform pore sizes and distribution. The fluidizing media provides uniform distribution of gas and air flow for particulate fluidization and aeration.
- Cleanability
- Heat resistant / high operating temperatures
- Application and material versatility
- Enhanced chemical resistance
- Abrasion resistant
- Easily fabricated
- Uniform flow
- Fixed pore geometry
![fil-200362 Fluidizing Media by Porous Metal Filters](https://www.pmfilter.net/wp-content/uploads/2024/08/fil-200362.jpg)
![Fluidizing Media by Porous Metal Filters Fluidizing Media by Porous Metal Filters](https://www.pmfilter.net/wp-content/uploads/2024/04/pixelcut-export-14.jpeg)
Fluidizing Media Applications
- Fluidizing beds
- Aerator for hoppers
- Air slides, rolls, and bearings
- Vacuum forming and molding
- Resin and catalyst beds
- Air gravity conveyors
- Flame and spark arrestors
- Spargers
Fluidizing Media Specifications
- Standard alloys: 304, 304L, 316, 316L, Alloy20 (also available in Inconel 600 and 625, Monel, and Hastalloy upon request).
- Operating temperature 1000 F.
- Standard sheet sizes: 18” x 48” and 20” x 48”. Custom sizes available upon request. Maximum laminate size without welding is 24”x 60” (larger sheets available with welds, maximum panel width with welds 120”).
![Fluidizing Media by Porous Metal Filters Fluidizing Media by Porous Metal Filters](https://www.pmfilter.net/wp-content/uploads/2024/04/pixelcut-export-15.jpeg)
Multi-Layer Diffusion Bonded Structure

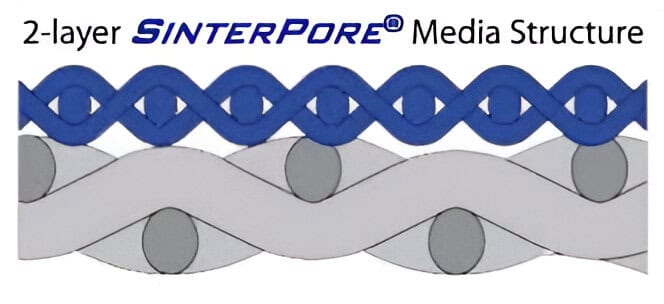

SINTERPORE® is available in 2-layer and 3-layer composite structures depending upon flow requirements. Each layer in the laminate performs a specific function in the structure. Heavy meshes provide strength and support to finer meshes which provide flow distributrion and flow barriers.
(SCFM/SF @ 2” W.C.)
(inches)
Engineered Pore Structure and Flow Dynamics
In addition to the standard SINTERPORE® low perm and high perm media, custom designs can be specified for almost any application. Strength, pore size, porosity, tortuosity, permeabiilty and edge flow resistance all can be designed to a given specification.
Porous Metal Filters is ISO 9001 Certified, and all our products are manufactured to the highest quality standards. Our staff is available to help you design the wire filtration product that will meet your design requirements and budget. Contact us today for more information about our products.
